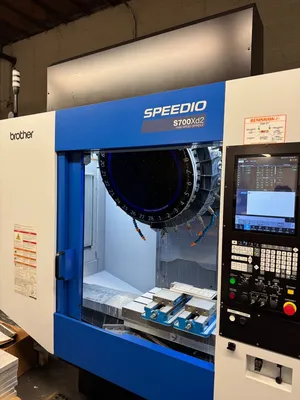

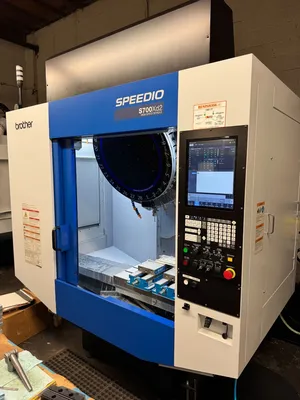

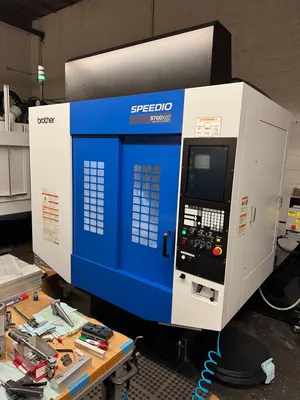

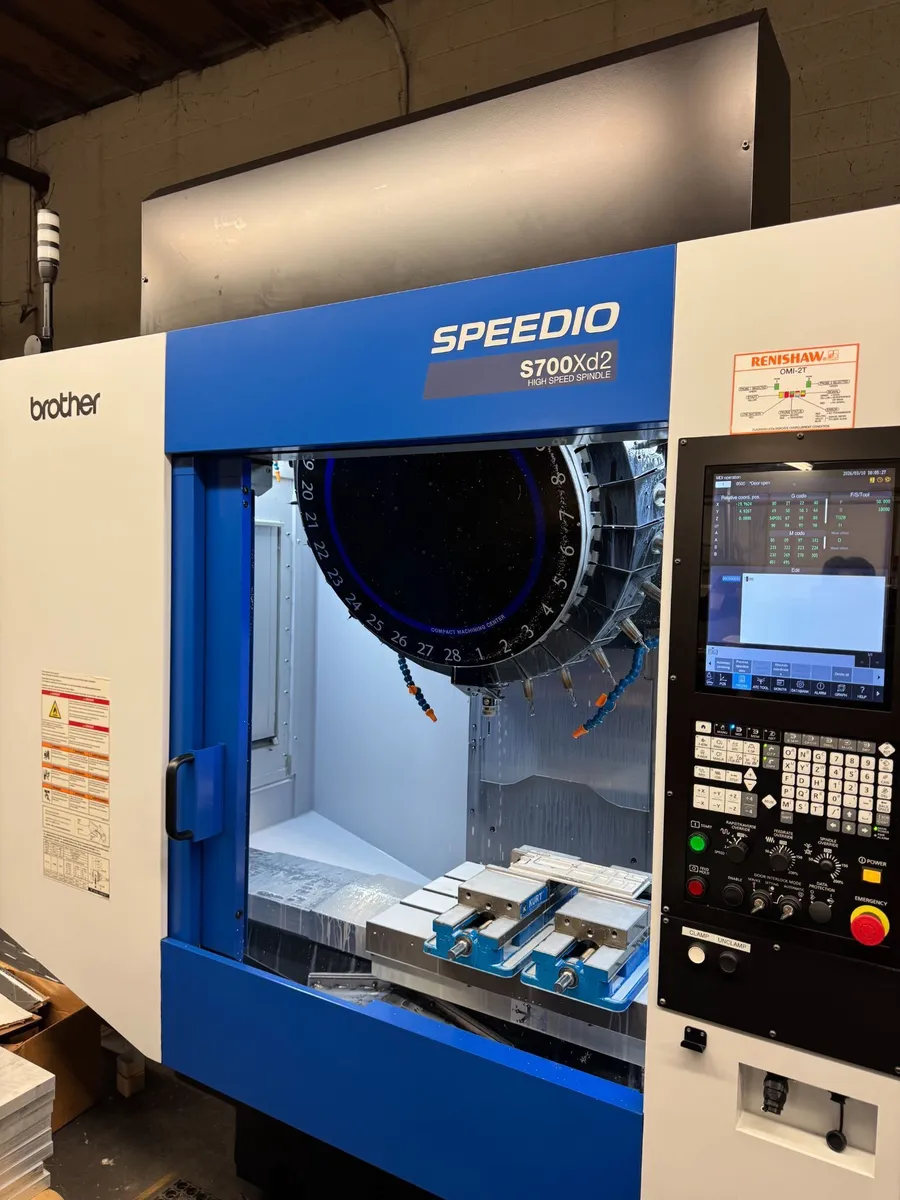

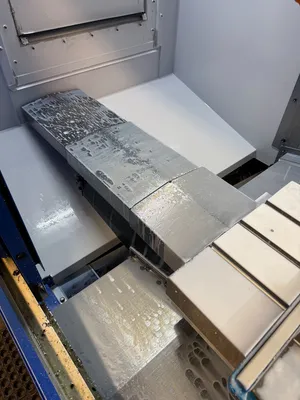

2024 BROTHER Speedio S700XD2 CNC Drilling and Tapping Center
Have one to sell?
ConditionUsed
1 available
2024 BROTHER Speedio S700XD2 CNC Drilling and Tapping Center, ideal for precision tasks. Equipped with CNC D00 Control and chip conveyor, it features a 700x400 mm table, 27,000 rpm spindle, and a 28-tool magazine. Perfect for high-speed, high-efficiency operations.
Table size: 700 × 400 mm
Travels:
X: 700 mm
Y: 400–450 mm (varies by configuration)
Z: 300 mm standard / 380 mm optional
Spindle:
Standard speed: 27,000 rpm
Power: 7.5 kW (10 hp) on 16,000 rpm variant
Taper: BT30 (BIG‑PLUS dual‑contact optional)

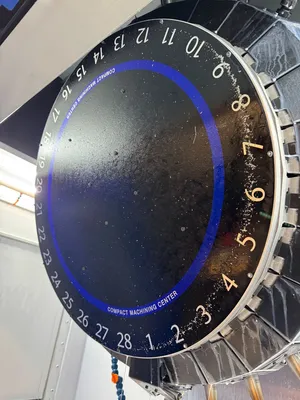

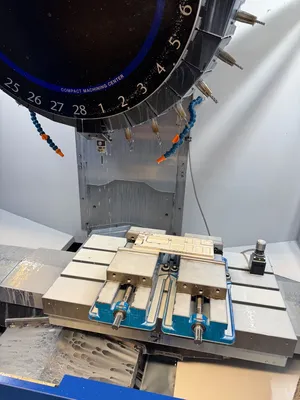

Tool magazine: 28 tools
Tool change time:
Chip‑to‑chip: ~0.9 sec (21‑tool turret)
As fast as 1.2–1.4 sec depending on magazine & tool weight
Rapids:
X/Y: 50 m/min
Z: 56 m/min
Table load capacity: 300 kg (largest in Speedio line)
Machine weight: 3,800 kg
Footprint: ~2,050 × 2,081 mm (varies slightly by configuration)

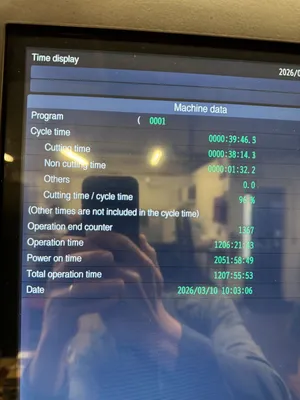

CNC D00 Control
S700Xd2 27K 28T BBT
3-Stage Indicator Light
Work Light Kit (2-Lights) w/Brackets
Extended 1/0
CleanSweep G2 Left Hand Discharge 380L

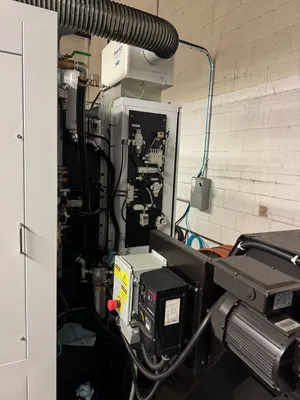

Amano MZ-15 Mist Collector with Top Mount
Top Cover

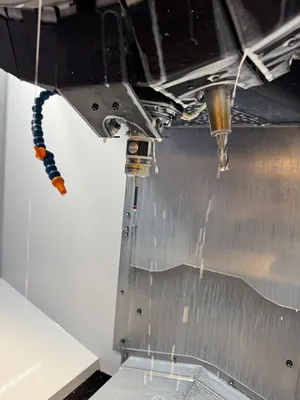

Renishaw OMP400 Spindle Probe for Brother

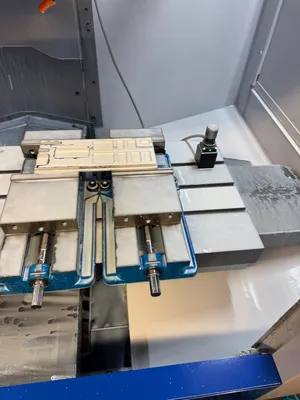

Blum Z-Nano w/ 60mm Riser
Pneumatic Panel Side Mounted

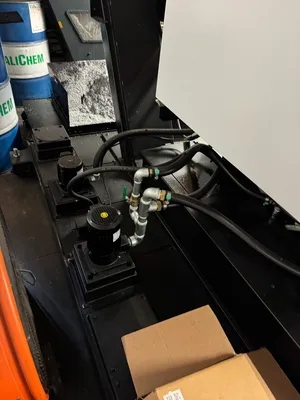

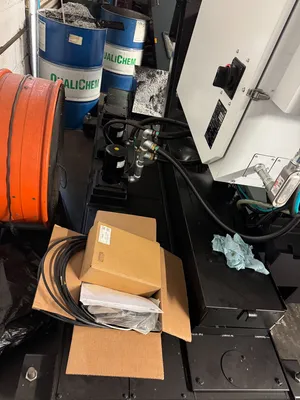

Pneumatic Circuit w/ One Dual Acting Valve, 4 Station
Block

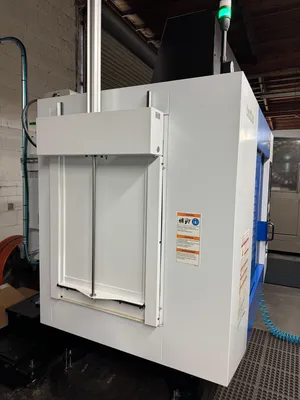

Side Shutter Auto-Door, RD-S700Xd2-FLEX3P-W
Brother S700Xd2 Camplete Module (Nexgen
Solutions)

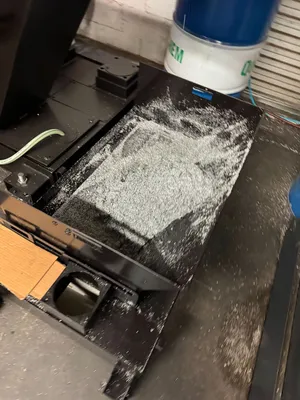

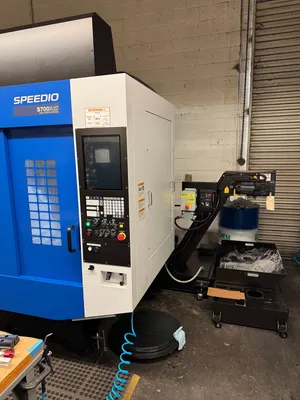

Chip Conveyor
Paid $179k New with Options
