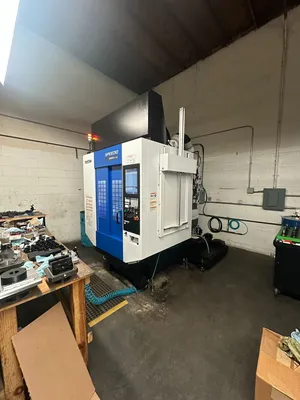

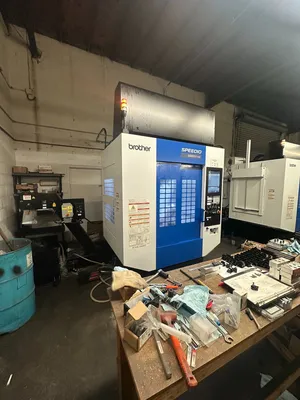

Used 2024 BROTHER Speedio U500XD1 | CNC Drilling and Tapping Centers
Have one to sell?
ConditionUsed
1 available
The Brother Speedio U500 line (U500Xd1 and U500Xd2) is a compact 5‑axis‑capable BT30 machining center built around a tilting rotary table with a Ø500 mm jig area. Below is a consolidated, decision‑ready spec set using the most authoritative data from Brother and verified machine‑tool sources
Brother CNC-D00 Control with Built-In PLC
16,000 RPM BBT CTSI (Coolant Through Spindle Interface - No Pump)
9.9/6.8 HP Main Spindle Motor - IPM Motor Type
BIG-PLUS BT-30 Taper, 28 Tool Drum-Type ATC
Travel: 19.7¨ x 15.7¨ x 11.8¨

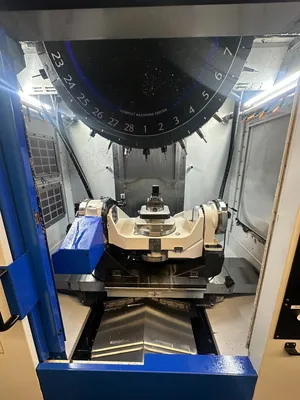

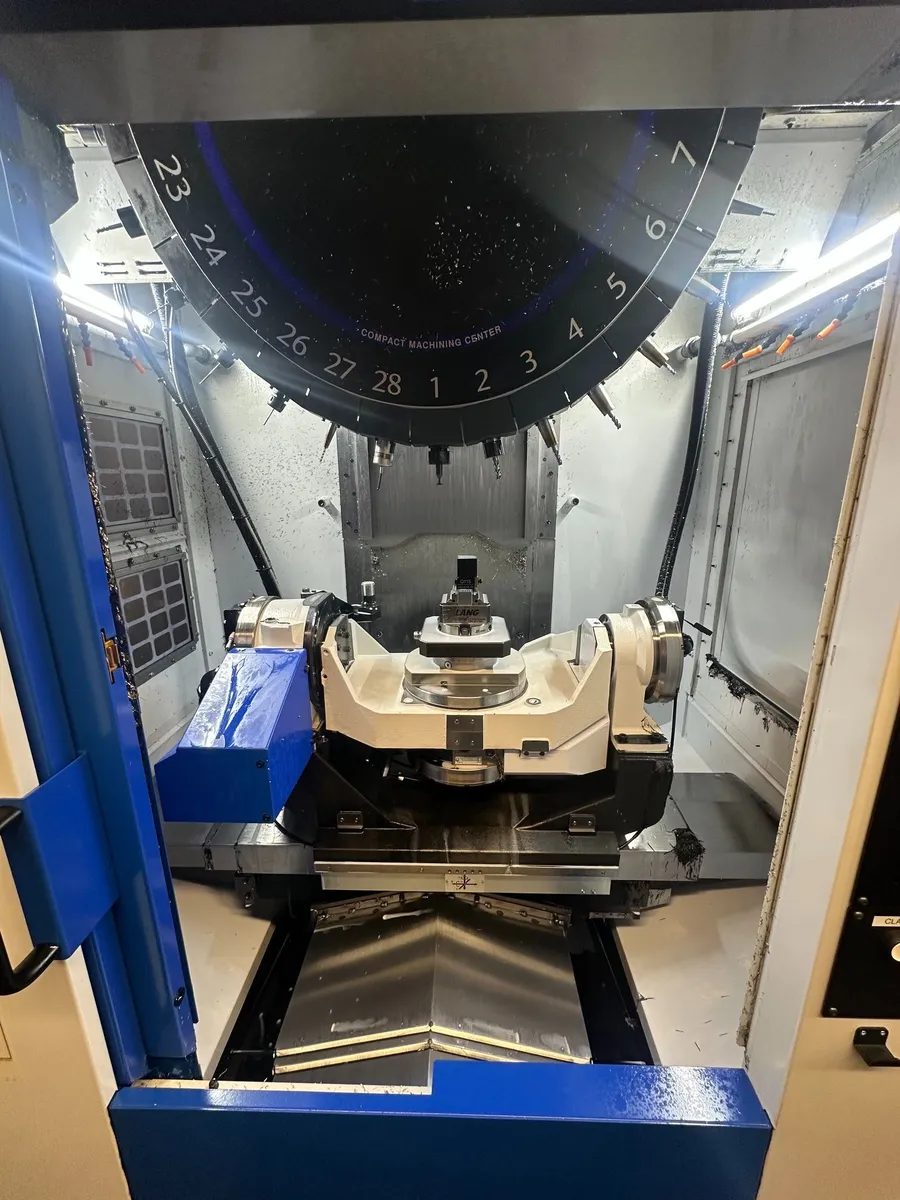

Tilting Rotary Table with 10.2 Diameter Work Area Size
Rapid Traverse: X,Y - 1,969 IPM / Z - 2,205 IPM
Air Assisted Tool Wash and Back Washing System
Automatic Grease Lubrication System
Chip Shower System
Complete Covers and Safety Door Interlock System
Simultaneous 5-axis Control
Tool Center Point Control (look ahead 1,000 blocks)
Memory Expansion (3Gbytes)
Feature Coordinates Settings
Paid $253k New with Options
U500Xd1-5AX 16K BBT 28T CTSI
1 Manual Pulse Generator
1 3-Stage Indicator Light
1 Work Light Kit (2-Lights) w/Brackets
1 Side Cover w/ transparent window (one side)
1 Extended I/O
1 CleanSweep G2 Right Hand Discharge 380L
1 Amano MZ-15 Mist Collector with Top Mount
Installation Kit
1 Renishaw OMP400 Spindle Probe for Brother
1 Blum Z-Nano for U500
1 AxiSet Checkup Kit Brother T-T AU w/ACS-1
1 Rotary Joint 6 Port
1 Pneumatic Panel Side Mounted
1 Pneumatic Circuit w/ One Dual Acting Valve, 4 Station
Block
1 Side Shutter Auto-Door, RD-U500Xd15AX-FLEX3PW
1 Adapter Plate, Schunk Vero-S 138 to Brother Table
1 Freight and Rigging to Your Floor
1 Brother 5AX Camplete Module (Nexgen Solutions)
