Spindle Thru Bore 21"
Swing over bed 50"
Distance between centers 160"
Width of Bed 28"
Weight of machine : 17500kgs

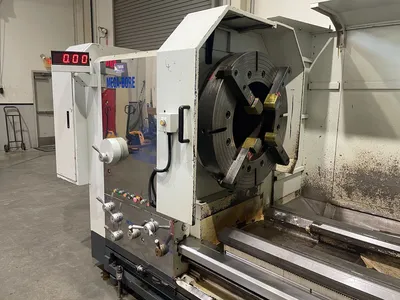

36” 4 Jaw steel chucks front and back
Semi-auto threading cycle
Full Length Built in Hydraulic Copy System

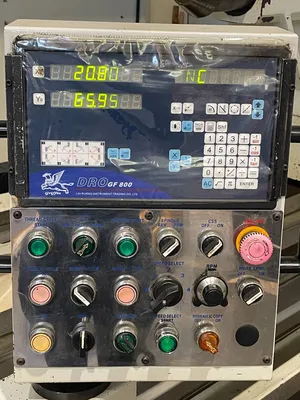

2 Axis Digital readout.
Auto 4 steps Spindle speeds with inverter drive 6 - 250 rpm
Digital spindle speed display
Cross slide travel 31.5"
Compound slide travel 12" (Powered)
Metric Threading 1 - 56 mm (60)
Inch Thread TPI ½-28 (60)
Module thread MOD 0.25-14 (60)
Diametral DP 2-112 (60)
Pitch of leadscrew mm (TPI) 12(2)
Tailstock quill Diameter 5.75"
Tailstock travel 7.87
Quill Taper MT6
Motor capacity 40HP
Voltage: 440V 50Hz. 3Ph
Hardened Ways
16” Dia. capacity roller stead rest
28” Dia. capacity roller steady rest
6” Dia. Cross slide mounted HD boring bar holder
Full length chip conveyor
Full length splash guard
This equipment has been sold. Similar equipment available now is shown below.
