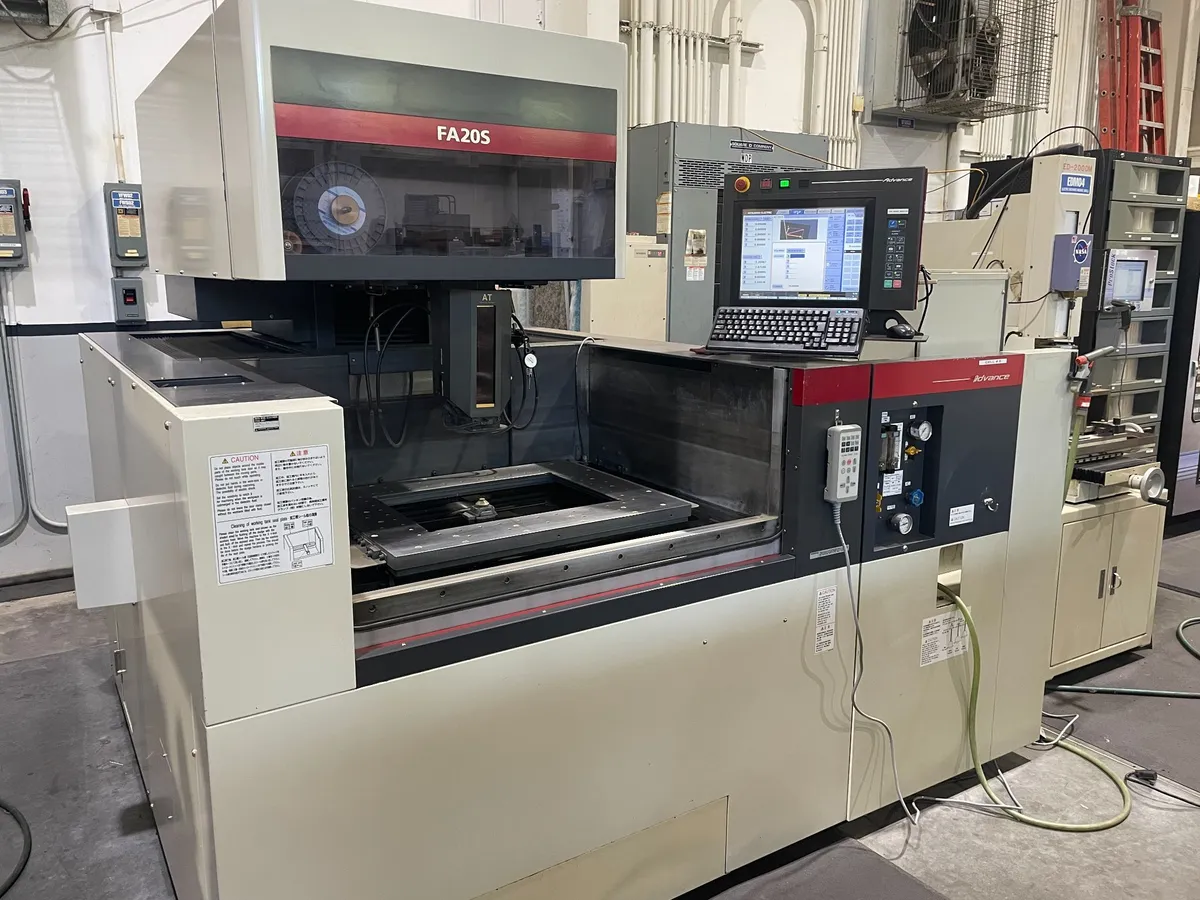

MITSUBISHI FA-20S Advanced 2007 Wire EDM
Have one to sell?
ConditionUsed
1 available
MITSUBISHI FA-20S Advanced Wire EDM, 2007 model, used condition. Specs include 13.8"x19.7" machining stroke, max workpiece weight 3,300 lbs, 200-220V electric reqs. Features Mitsubishi M750 CNC, submerged machining, auto wire threader, and more.
Machining Stroke ( X x Y x Z ) 13.8" x 19.7" x 11.8"
Machining Stroke ( U x V ) +/- 3.0"
Maximum Workpiece Size 41.3" x 31.5" x 11.6"

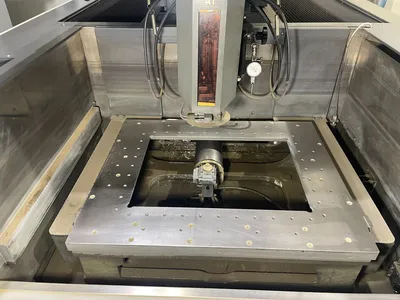

Table Size 30.7" x 24.8"
Tank Dimensions 42" x 32" x 12"
Taper Capacity +/-30 Degrees
Taper Angle @ Thickness 15 deg @ 10.5"
Maximum Workpiece Weight 3,300 lbs
Maximum Drive Unit / Resolution 0.00001mm / 2 Millionths
Min Hole Diameter .02"
Wire Diameter Capability .004" - .012"
Wire Guides Included .008"
Max. Wire Spool Size STD 22 lbs
Dielectric Water Capacity 187 Gal
Electrical Requirements 200-220V/3Phz/60Hz
Machine System Footprint Dimensions 102"L x 109"W x 85"H
Machine Tool Dimensions 80" x 104" x 85"H
Machine System Weight 9,516 lbs
2008 Mistubishi FA20-S Advanced WEDM

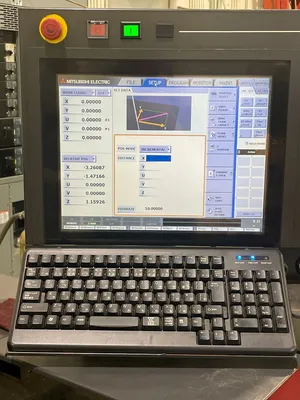

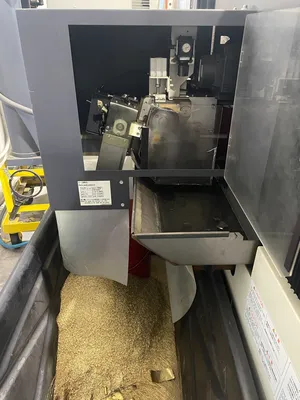

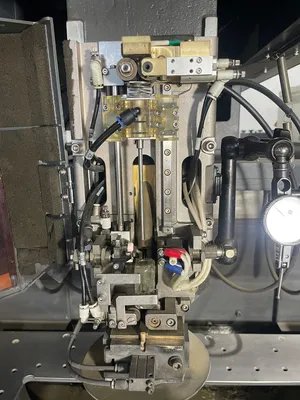

* Mitsubishi M750 CNC Control w/Touchscreen * Submerged Machining Capability * Automatic Wire Threader (Submerged & Breakpoint) * Ethernet, USB, RS232 * 4-Sided Zeroline Table * On-Board CAM Programming * Automatic Fluid Level Control * Auto-Lock Vertical Tank Door Mechanism * Fine-Grain Dianite Casting Material * Moving Column Design * DC-Servo (Closed Loop) Torque Control Wire Tensioning System: * Direct Drive 32mm Ball Screws * Linear Motion Guide Ways * New Digital 500 Watt AC Servo Drive System * All-Axes Absolute Control System * Linear Glass Scales (X&Y) * Fine Resolution Encoder Feedback (U&V) * Standard Long Travel 3-Inch U-V Taper Unit * 16 Step Programmable Flushing Control * Remote Hand Pendant * Wire Chopper * Filtration System * Electric Chiller * All Available System Disks, Manuals and Accessories
