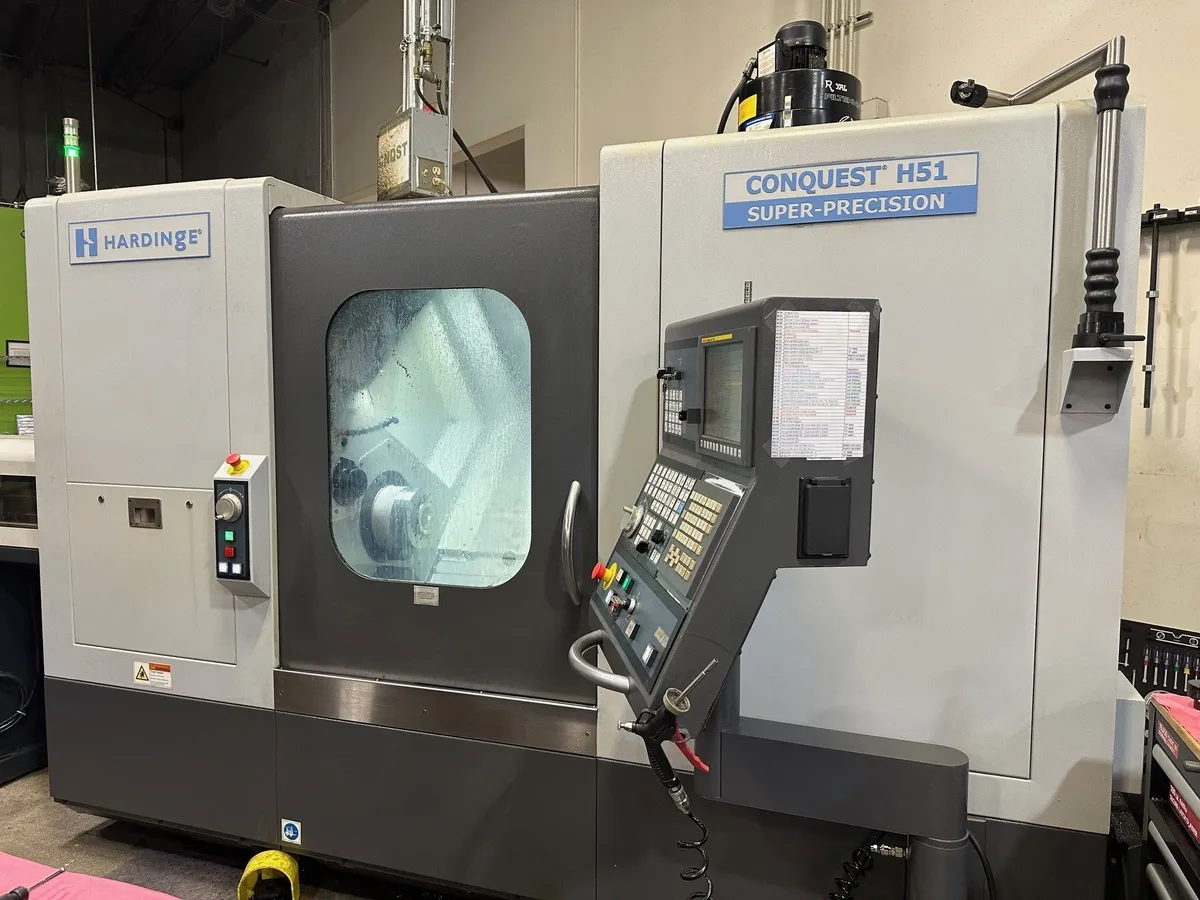

HARDINGE CONQUEST H51 CNC Turning Center with Sub-Spindle and Y-Axis (HEF51SPMSY)
Have one to sell?
ConditionUsed
1 available
HARDINGE CONQUEST H51 Used CNC Lathe (2017) Swing: 27.87", Machining Length: 25.5", Chuck Size: 8 mm, Bar Capacity: 2", Power: 20 kW, Max RPM: 5,000, Turning Dia: 12.3". Features Fanuc Series 0i TD Control, and sub spindle.
Bar Capacity: 2"
Spindle Speed: 4,700 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.75"
Z Axis Travel: 28.15"
Rapid Rate Z Axis: 1,500 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,500 IPM
Max Turning Dia: 15.04"
Max Turning Length: 21.52"
Max Swing: 27.87"
Dimensions: 120" x 103" x 85"
Weight: 16,600 LBS
Fanuc Oi-TD Control
Tool Presetter
BMT-55 Turret
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
Part Ejector
Approx 8700 Run Time Hours
Y and Z Axis Scales
