Used 2017 EMAG VL 3 DUO | CNC Lathes
Have one to sell?
ConditionUsed
1 available

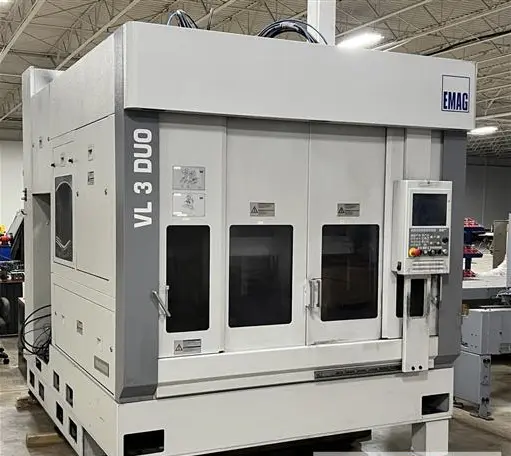

2017 EMAG VL 3 DUO CNC Lathe: Dual Spindles, 5,000 rpm, 37.68 HP, 12 Turret Pos, with Fanuc Controls, Heinbuch Tech, and Hennig Chip Conveyor. Maintain high precision with advanced features. Used condition.
CAPACITY:
Workpiece diameter, Max
6"
Chuck diameter
8"
Workpiece length, Max
4.33"
Travel, X-Axis
19.5"
Travel, Z-Axis
10"
Main spindles
2X
Power rating
37.68 HP
Torque
144 Nm / 98 Nm
Spindle Speeds, max
5,000 rpm
Spindle flange to DIN 55026
Size 6
Spindle bearing diameter, front
4"
Turrets
2X
Turret Positions
12
Rapid Traverse X
2,363 IPM
Rapid Traverse, Y & Z
1,181 IPM
Fanuc 31i/32iB CNC Controls w/ Integrated SPS
Twin Spindles
Quick Change Over Spindles
(2) Heinbuch Collet Chucks
Heinbuch Centrotex
Driven Turret Tools
Component Storage and Transport with (2) L-Shuttle and Track Motion
Air Sensing
Component Gauging
Hennig Scrapper Chip Conveyor
