O-M RT-915 CNC Vertical Lathe NEW
Have one to sell?
ConditionNew
1 available
New

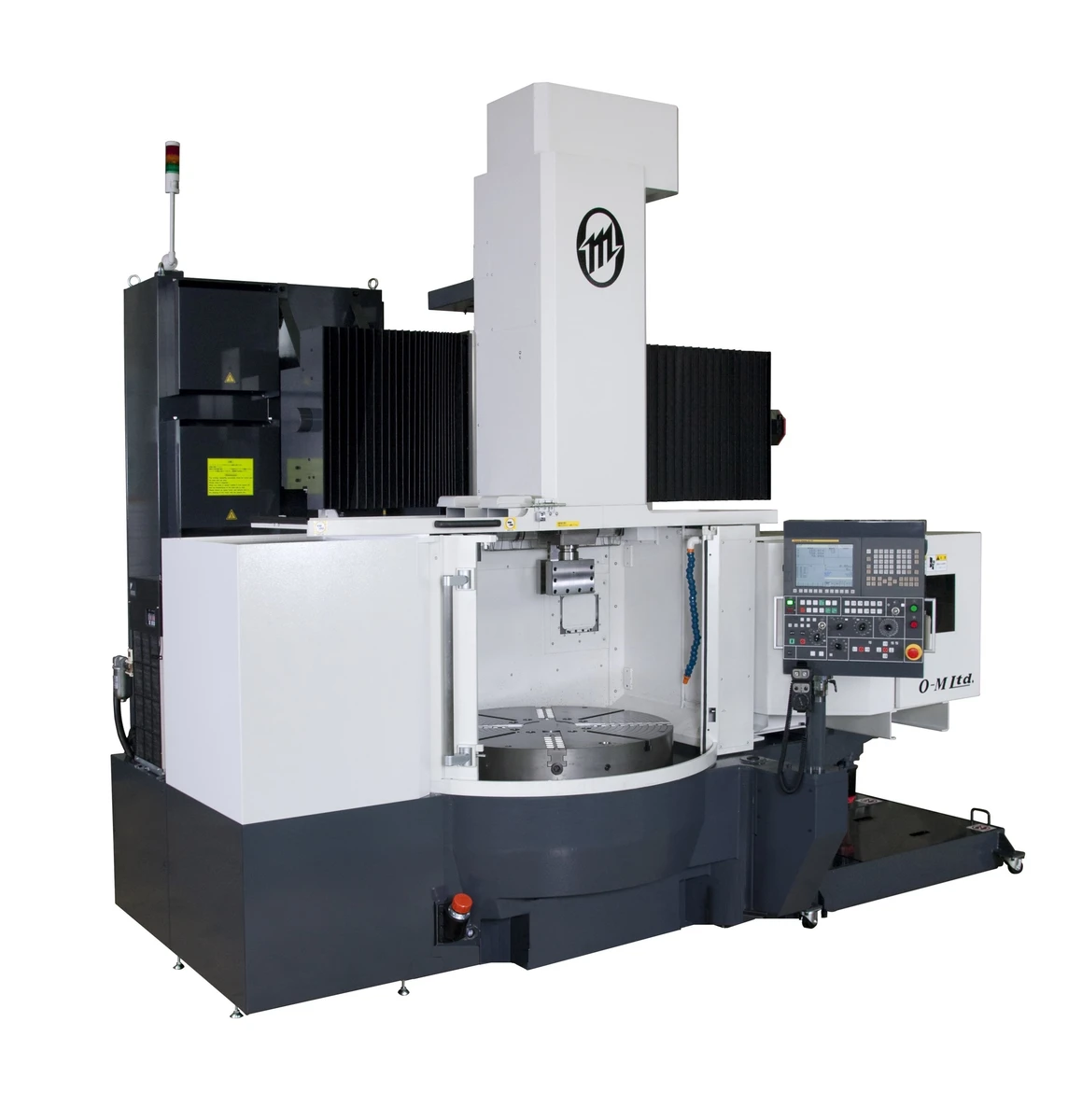

Get your hands on this used O-M RT-915 VTL, manufactured in 2023. This top-of-the-line, Japanese made equipment boasts a table diameter of 36.02 inches, a maximum turning diameter of 39.37 inches, and a maximum swing of 43.31 inches. Handle workpieces up to 3,300lbs with maximum torque for turning of up to 3,231lbf・ft. Equipped with FANUC 0i-TF PLUS CONTROL and automatic tool changer accommodating 18 tools. It comes with an independent 4-Jaw, fully enclosed chip cover, chip conveyor, and chip bucket. The model also prioritizes the environment with high PSI coolant applicability. Key features include high operability, accessibility, and a small footprint for saving space. Tool Presetter is optionally included.
Description RT-915
Table diameter 915mm（36.02"）
Max. turning diameter 1,000mm（39.37"）
Max. swing 1,100mm（43.31"）
Max. turning height 700mm（27.56"）
Max. mass of workpiece 1,500kg（3,300lbs）
Max. torque for turning 4,380N・m（3,231lbf・ft）
Max. cutting force 20,000N（4,400lbf）
Ram size
Tool Shank Size 32 x 32mm（1.25"x1.25"）
Number of table speed Range 1
Table speed for turning 4.2min-1 ～ 420min-1
Rapid feed speed（X axis）20,000mm（787.4"）/min
Rapid feed speed（Z axis）15,000mm（590.55"）/min
Cutting Feed Rate 0.01mm（0.0004"）/rev ～ 500mm（19.69"）/rev
Main motor AC 37/30KW（50/40HP）
Magazine capacity 18 pcs
Max. machine height 3,440mm（135.43"）
Machine dimension（width×depth） 3,682mm（144.96"）× 3,730mm（146.85"）
Total power capacity 60kVA
Mass of machine 13,100kg（28,880lb
FANUC 0i-TF PLUS CONTROL
36.02" INDEPENDENT 4-JAW
AUTOMATIC TOOL CHANGER -18 TOOLS
FULLY ENCLOSED CHIP COVER
CHIP CONVEYOR
CHIP BUCKET
TOOL PRESETTER (INCLUDED ONLY FIRST FEW MODELS, THEN BECOMES OPTION)
X-AXIS LINER SCALE FEEDBACK
KEY FEATURES OF THIS NEW O-M RT-915CNC VERTICAL LATHE
HIGH OPERABILITY, ACCESSIBILITY AND SMALL FOOTFRINT
RAM TYPE TOOL POST WITH RIGIDITY
ENVIRONMENT CONSCIOUS
FULLY ENCLOSED CHIP COVER
HIGH PSI COOLANT APPLICABLE
MFG IN JAPAN
HUGE INTRODUCTORY DISCOUNT PRICING (COMPETITIVEY PRICE WITH OFF BRAND MODELS)
CONTACT US FOR MORE DETAILS
